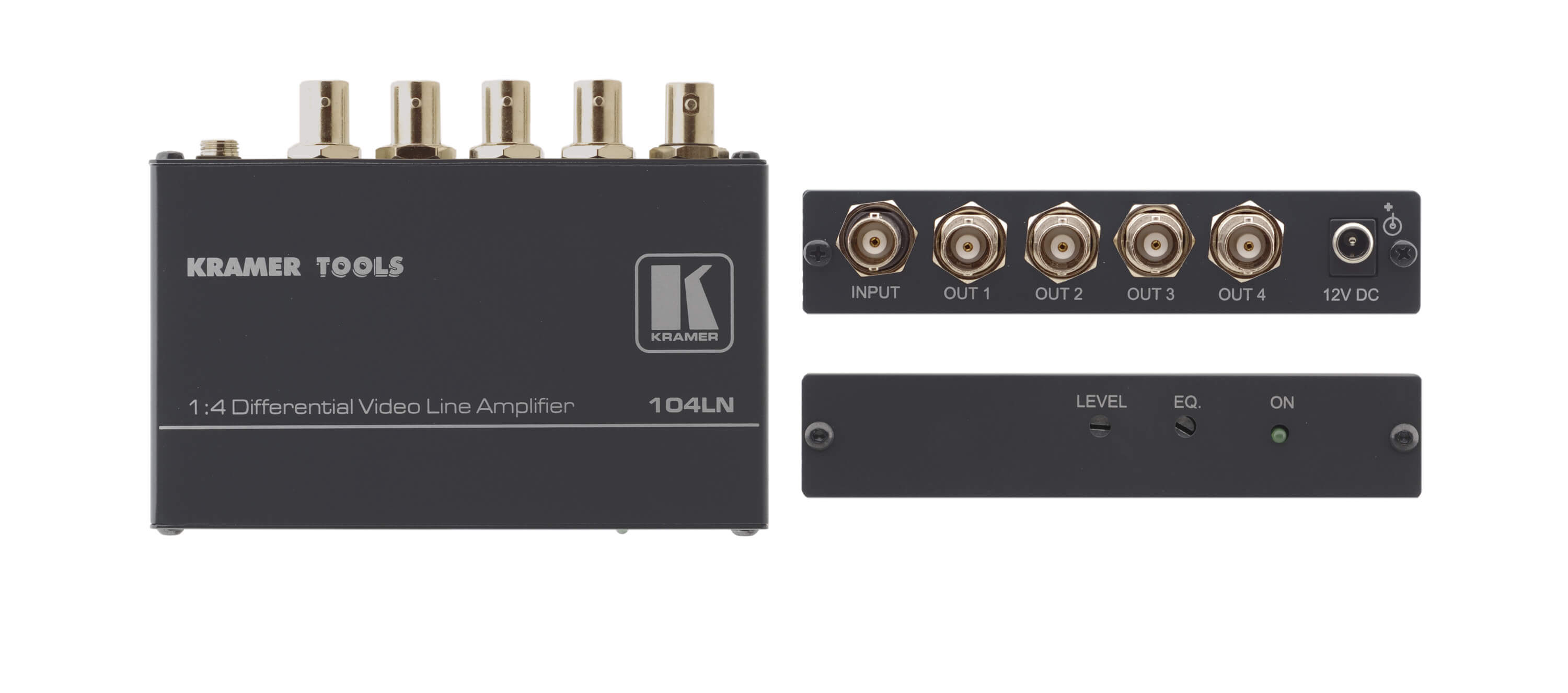

1:4 Composite Video Differential Line Amplifier
Bandwidth — 420MHz (–3dB)
Differential DA
Level & EQ Controls

INPUT
1 composite/SDI video, differential, 1Vpp/75Ω on a BNC connector
OUTPUTS
4 composite/SDI video, 1Vpp/75Ω on BNC connectors
MAX. OUTPUT LEVEL
1.6Vpp
BANDWIDTH (-3DB)
423MHz
DIFF. GAIN
0.22%
DIFF. PHASE
0.1Deg
K-FACTOR
<0.05%
S/N RATIO
73.3dB
CONTROL
Level: — 1.3 to 6dB
EQ. 0 to 10.2dB
COUPLING
DC
POWER CONSUMPTION
12V DC, 95mA
INCLUDED ACCESSORIES
Power supply, mounting bracket
PRODUCT DIMENSIONS
12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
PRODUCT WEIGHT
0.2kg (0.5lbs) approx.
SHIPPING DIMENSIONS
23.20cm x 12.00cm x 8.90cm (9.13" x 4.72" x 3.50" ) W, D, H
SHIPPING WEIGHT
0.6kg (1.2lbs) approx.
